Module 3: Toxicology - Section 2: Classification of hazardous substances

TOX 2.3: Lecture: Classification systems for hazardous substances

INTRODUCTION:

In order to make sense of the large number of hazardous chemical compounds or used in industry and their effects, we need a way of classifying them. Classification reduces a large amount of data to manageable proportions and is also a way of remembering the important features of these chemical compounds.

Classification systems:

1. Physical state
2. Physiological effects
3. Chemical composition
4. Organ system or disease

Physical state:

(As from occupational hygiene)

1. Contaminant in molecular state:

   Gas: at room temperature and pressure, e.g. welding gases: ozone, NO₂
   Vapour: gaseous form of liquids and solids, e.g. organic solvents.

   Volatility is an important feature of hazard potential: evaporation rate, vapour pressure.
   Revise the concept of vapour pressure from you Occupational Hygiene notes.



2. Particulates (aerosols): contaminant in solid or liquid state dispersed in gaseous medium

   Dust: solid particles 0.1 to 25 µm in diameter
   Fibre: length/diameter ratio > 3 (asbestos is the main example)
   Fumes: solid particles due to condensation from gaseous state usually from molten material, often with oxidation; usually < 1.0 µm, e.g. iron oxide in welding fumes.
   Smoke: carbon or soot particles < 0.1 µm, from incomplete combustion of carbonaceous materials.
   Mist: finely divided liquid particles, larger in size, from splashing or condensation - e.g. paint spraying, cutting oils during grinding.



   Avoid using the term "fumes" when you mean vapour, gas or even smoke. Be precise in your description when you take notes, write reports or communicate, as each term has different implications with regard to source, control and impact.

Physiological effects:

1. Irritants:

   Mucous membranes, skin, eyes, upper respiratory tract, lower respiratory tract.

   Many, probably most, complaints among workers working with chemical substances fall into this category, and may interfere with quality of life. Irritative symptoms may also be the first indication of excessive exposure. Although it must have a specific pathophysiological basis, irritation is often used as a non-specific concept. It is sometimes contrasted with allergy, as in irritative vs allergic contact dermatitis.

2. Asphyxiants (gases, vapours):

   Simple: replace oxygen, as in a confined space.
   Irritant: interfere with respiration through e.g. laryngospasm or pulmonary oedema
   Chemical: interfere with respiration by blocking a crucial step or steps (e.g. cyanide)

3. Systemic poisons:

   Very large category. See classification by organ system. Examples include:

   Hepatotoxins - tetrachloroethane
   Neurotoxins (peripheral or central) - mercury, lead, solvents, pesticides
   Nephrotoxins - heavy metals
   Haematotoxins - benzene
   Cardiotoxins - carbon disulfide
   Reproductive toxins - glycol ethers, lead

4. Anaesthetics, narcotics

   Rapidly penetrate blood brain barrier and cause CNS excitation or depression - organic solvents.

5. Mutagens: damage DNA

   May be critical to cell, or occur in gamete (sperm or ovum).
   May be basis of carcinogenesis.

   Although a number of substances are mutagenic in the laboratory, ionizing radiation is the best known mutagenic hazard in humans.

6. Teratogens: damage foetus

   A number of substances are teratogenic in animal experiments, e.g. a number of pesticides. However, extrapolation to humans is difficult. The best known human example is (environmental) methyl mercury. (Look up: Minamata disaster). Epidemiology difficult as need to be able to study critical period of foetal development of 1 - 5 weeks to establish causation.

7. Carcinogens

   Initiators: primary - cancer at point of contact (e.g. alkylating agents)
   Procarcinogens: metabolised into carcinogen (e.g. benzidine)
   Promoters: Co-carcinogens - accelerate tumour growth (may be long after initiation) (E.g. in the case of asbestos and lung cancer, there has been debate as to whether it is a "complete carcinogen" or a promoter which needs an initiator co-factor).

8. Respiratory toxins and irritants

   Dusts with high capacity of causing pneumoconiosis: asbestos, silica, coal
   "Nontoxic" dusts - low capacity to cause pneumoconiosis, although may do so, but can all irritate respiratory tract, e.g. clay, mica, limestone, portland cement.

9. Allergens

   Substances capable of causing allergic reaction, e.g. flour, cement.

Chemical composition

1. Inorganic compounds and gases
2. Organic solvents
3. Nitrogen- containing organics
4. Other hydrocarbons of importance
5. Monomers and polymers
6. Pesticides

1. Inorganic compounds and gases

   Question 1: What is the distinction between inorganic and organic?
   Answer.

   1. Halogens: chlorine, bromine, fluorine

      Highly reactive ® thus part of many compounds as well as toxic on their own as gases with strong respiratory tract irritant properties.

   2. Acids, alkalis: sulphuric acid; ammonia, calcium oxide

      Depending on solution, can be strong skin and respiratory tract irritants (hydrofluoric acid, e.g, causes serious acid burns).

   3. Compounds of oxygen, nitrogen, carbon, sulphur: (gases)

      - Oxides of nitrogen (NOX): nitrogen (N₂), nitrogen dioxide (NO₂), nitrous oxide (N₂O), nitric oxide (NO);
      - carbon monoxide (CO), carbon dioxide (CO₂);
      - sulphur dioxide SO₂, hydrogen sulphide (H₂S)

   4. Metals:

      Malleable, ductile, metallic lustre.

      Heavy metals: lead, mercury, arsenic, cadmium
      Hard metals: cobalt, tungsten (and its carbide).

   5. Other noxious gases: Arsine (AsH₃) - Haemolytic anaemia

   6. Carbon disulfide: (Inorganic solvent)

      - Used in viscose rayon production, cellophane
      - Multisystem toxin: eye lesions, hearing loss, coronary artery disease, reproductive defects, nervous system abnormalities.

2. Organic solvents

   These are covered in more detail in the section on Organic Solvents: HT: Solvents: review of general properties, HT Solvents: review of general effects



   1. Aliphatic: (straight chain) hydrocarbons

      Saturated (alkanes or "paraffins"): all carbon-carbon bonds are single.

      E.g. methane, propane, n-hexane
      - Simple asphyxiants on inhalation, skin irritants on contact
      - Higher (longer) forms: irritants, CNS depression

      Unsaturated (alkenes, alkynes): one or more carbon-to-carbon bonds is double

      E.g., ethylene, isoprene: Simple asphyxiants, weak anaesthetics

   2. Alicyclic hydrocarbons (alkanes or alkenes in ring structure)



      E.g. cyclopropane, cyclohexane: effect resembles that of aliphatics

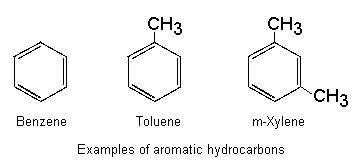

   3. Aromatic hydrocarbons (one or more "benzene rings")



      - Very important group: benzene, toluene ("toluol"), xylenes ("xylol")
      - Irritant, anaesthetic properties greater than aliphatics

      Question 2: Where is the general public likely to encounter benzene?
      Answer

   4. Halogenated hydrocarbons: hydrocarbon chain plus a halogen:

      Also very important group: occupationally and environmentally.

      Question 3: Why environmentally?
      Answer

      E.g. Carbon tetrachloride; trichloroethylene; perchloroethylene
      Respiratory and skin effects, Hepatotoxic, nephrotoxic, neurotoxic, carcinogenic?, teratogenic?

   5. Alcohols: hydrocarbon chain plus an hydroxyl group:

      E.g. methanol, ethanol, isopropyl alcohol

      - Higher forms more toxic
      - Methanol: very specific optic nerve toxicity on ingestion (on inhalation?)

      By far the biggest problem from this category that you will encounter in the workplace is the effects of ethanol ingestion. You should know its toxic effects, both acute and chronic, in order to be able to treat these.

   6. Glycols: hydrocarbon chain with two hydroxyl groups

      E.g. ethylene glycol: antifreeze agent, low toxicity






   7. Phenols: benzene ring plus hydroxyl group

      E.g. phenol - used in laboratories, including anatomy
      - Potent irritant, cytotoxic
      - Hydroquinone - allergic dermatitis






   8. Ketones: hydrocarbon chain plus a carbonyl (C=O ) group:

      -Very strong odours (no necessary correlation with toxicity as many people think)

      E.g. acetone
      - Methyl ethyl ketone (MEK)
      - Methyl n-butyl ketone - one of the few substances causing peripheral neuropathy.

   9. Ethers: two hydrocarbon chains linked by an oxygen:

      (i) Simple ethers: e.g. ethyl ether - anaesthetics
      (ii)Glycol ethers - multisystem toxicity including male reproductive system, teratogenesis
      (iii)Cyclic ethers - used in epoxy resins, allergenic
      (iv)Glycidyl ethers - sensitisers, reproductive toxins

   10. Esters: organic acid and alcohol

       E.g. methanol and acetic acid = methyl acetate

       - Strong odour
       - Anaesthetics

3. Nitrogen containing compounds

   1. Aliphatic amines: aliphatic hydrocarbon plus amino group:

      E.g. Methylamine (gas), diethylene triamine

      - Derived from ammonia
      - Irritant, allergenic


   2. Aromatic amines: benzene ring plus amino group

      Aniline, naphthylamine, benzidine

      - Wide spectrum of toxicity, including:


      • methaemoglobinaemia
      • bladder cancer

   3. Nitro esters (nitric acid esters of aliphatic alcohols)

      E.g. Nitroglycerin, ethylene glycol dinitrate

      - Important in South Africa: explosives manufacture
      - Vascular and cardiac effects, including headache, angina, sudden death from heart attack.

      Question 4: It was said that explosive factory workers used to wipe a small amount of substances on the insides of their hats when they went off for the weekend. Why?
      Answer

   4. Nitrosamines: contain a nitrosyl group:

      -Occupational and environmental exposure (tobacco, foods, in vivo formation)

      - Hepatotoxic; carcinogenic in animals and probably humans.

4. Other important organic compounds

   1. Formaldehyde

      - Widespread use in fabrics (including clothing) and building materials - very common (indoor ) exposure
      - Preservative, e.g. in anatomy
      - Irritant (although also listed as cause of asthma), skin allergen, potential carcinogen

   2. Polychlorinated biphenyls (PCBs)

      - Electrical industry
      - Notorious because of environmental contamination - persistent organic pollutant
      - Causes: Yusho disease, chloracne, birth defects.

   3. Dioxins

      E.g. 2,3,7,8, tetrachlorodibenzo-p-dioxin (2,3,7,8 - TCDD)

      - Contaminant in manufacture of phenoxy acid herbicides (including Agent Orange used to defoliate Viet Nam)
      - Contaminant in incinerator ash and in burning of PVC - hence environmental concern
      - Extremely toxic in lab
      - Acute exposure - mutlisystem toxicity
      - Chronic: chloracne, soft tissue sarcoma, ? reproductive effects

   4. Polycyclic aromatic hydrocarbons (PAHs)



      E.g.: benzo(a)pyrene. (Besides being a by product in industry, it is used in the laboratory as an experimental carcinogen).

      Coal tars (by product of coal conversion into coke): coal tar pitch, creosote

      - PAHs are found in ambient air pollution from industry.
      - Photodermatitis
      - Cancer: Scrotal (chimney sweeps), lung.

5. Monomers and polymers (plastics)

   1. Thermoplastics: can be reshaped by heat and pressure

      Vinyl chloride The monomer is a gas: hepatic angiosarcoma, cirrhosis, acro-osteolysis
      Polyvinyl Chloride (PVC): pneumoconiosis (if inhaled as fine dust)
      Styrene monomer: irritant, asthma, CNS effects
      Polystyrene ?

   2. Thermosets: permanent cross-linking which is heat resistant

      Isocyanates

      - Monomer or dimer: potent sensitizers skin and respiratory tract, e.g. toluene diisocyanate (TDI)
      - Polyurethane: foam, surface coatings.

   3. Resins: formaldehyde or amino resins

      E.g. urea - formaldehyde particle board foams

      - Headaches, respiratory tract, skin irritation (occupational and residential)

6. Pesticides (covered elsewhere)
